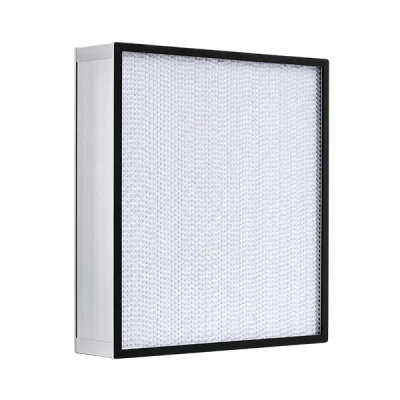

Deep Pleated HEPA Filter

The deep pleated HEPA filter is a high-efficiency air filter designed specifically for high-cleanliness environments. Its corrugated aluminum foil partition design divides the filter media into numerous narrow channels, causing the airflow within the filter to follow an arc-shaped path. This increases the contact opportunities between particulate matter and the filter media, enabling the capture of dust particles larger than 0.3 μm with a filtration efficiency reaching over 99.995%.

Filter Material: ultrafine glass fiber, artificial fiber, or PTFE
Filtration Grade: E10、E11、E12、H13, H14 (EN1822)
Separators: double corrugated cardboard or aluminum foil corrugated
Frame: aluminum alloy / galvanized iron / stainless steel / wooden frame
Temperature Resistance: ≤90 ℃
Moisture Resistance: ≤100%RH
Filtration Object: ≥ 0.3 μm or ≥ 5 μm particles

Features and Benefits of Deep-Pleat HEPA Filter

Deep-pleat design increases effective filtration area, enhancing processing capacity in high-airflow applications.
Aluminum foil separators maintain uniform pleat spacing, ensuring stable airflow.
Low resistance and excellent airflow permeability help reduce system energy consumption.
Filtration efficiency exceeds 99.995%, effectively capturing particles of 0.3μm and larger.
Available in box-type, single-header, or double-header configurations to meet various installation needs.
Compatible with galvanized steel, aluminum alloy, or stainless steel frames for a wide range of applications.
Each product can be individually leak-tested according to EN1822 standards and supplied with a test certificate for greater quality assurance.

Product Specifications

Note: other specifications can be customized according to your requirements.

Technical Parameters
Main materials	Filter media	Ultrafine glass fiber filter paper or Artificial fiber filter paper or PTFE
	Separators	Double corrugated cardboard or aluminum foil corrugated
	Outer frame	Aluminum alloy frame / Galvanized iron frame / Stainless steel frame / Wooden frame
	Sealant glue	Two-component AB glue
	Gasket	EVA
Filtration grade	E10、E11、E12、H13、H14（EN1822:2009）	Filtration object	≥ 0.3 μm or ≥ 5 μm particles
	MERV16~20 (ASHRAE52.2)	Temperature resistance	≤ 90 ℃
	ISO 15E, ISO 20E, ISO25E, ISO30E, ISO35H, ISO45H（ISO29463）	Instantaneous temperature resistance	≤100 ℃
		Moisture resistance	≤100%RH

Specifications
Model	Normal Size(mm)	Rated air volume (m ³ /h)	Initial resistance (Pa) at different air velocities
	WHD		0.25m/s	0.5m/s	0.75m/s
DPHF	320320220	400	≤120	≤220	≤240
	484484220	1000
	610610150	1000
	630630220	1500
	610610292	2000

Applications

Deep-pleated HEPA filter is specifically designed for environments with stringent air cleanliness requirements and is widely used for terminal filtration in various cleanrooms and precision manufacturing processes. The main applications are in the following industries:
