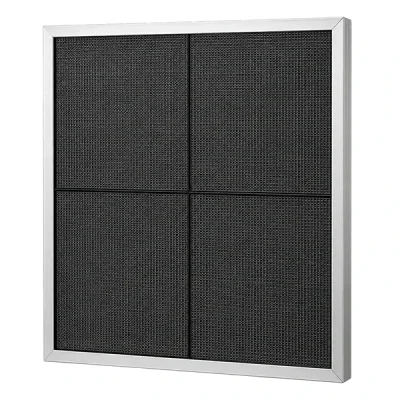

Nylon Mesh Pre-Filter
The nylon mesh pre-filter utilizes nylon monofilament filter media with a uniform microporous structure, effectively removing dust and large particulate impurities from the air. It is washable and reusable, making it suitable for air pre-filtration in a variety of challenging environments.
- Optional Thickness: 25-96mm
- Filter Material: synthetic fiber / non-woven fabric
- Filtration Grade: G2, G3, G4, M5, M6, F7, F8 (EN779 -2012)
- Frame: galvanized sheet / aluminum / stainless steel / cardboard
- Temperature Resistance: ≤100 ℃
- Moisture Resistance: ≤100%RH
- Filtration Object: ≥ 5 μm coarse dust
- Optional Thickness: 7-46mm
- Filter Material: PP, PA, PE nylon mesh
- Filtration Grade: G1, G2 (EN779)
- Frame: aluminum alloy / stainless steel / non-woven fabric
- Temperature Resistance: ≤ 100℃
- Humidity Resistance: ≤100%RH
- Filtration Object: ≥ 10 μm coarse dust
| Optional Thickness | 25-96mm |
| Filter Material | Synthetic fiber / non-woven fabric |
| Filtration Grade | G2, G3, G4, M5, M6, F7, F8 (EN779-2012) |
| Frame | Galvanized sheet / aluminum / stainless steel / cardboard |
| Temperature Resistance | ≤100 ℃ |
| Moisture Resistance | ≤100% RH |
| Filtration Object | ≥ 5 μm coarse dust |
Key features
- Nylon Mesh Structure: High-strength woven nylon filter media, wear-resistant with stable filtration performance.
- Washable and Reusable: Supports washing for repeated use, reducing operating costs.
- Low Resistance, High Airflow: Ensures efficient ventilation and lowers energy consumption.
- Acid, Alkali, and Corrosion Resistant: Suitable for chemical and corrosive environments.
- High-Temperature and Moisture Resistant: Maintains stable performance in high-temperature and high-humidity conditions.
- Lightweight and Easy to Maintain: Lightweight structure; easy to install and clean.
Product Specifications
| Item | Technical Parameters |
|---|---|
| Filter Material | Composed of multi-layer cross-interwoven corrugated aluminum mesh or stainless steel mesh |
| Outer Frame | Galvanized steel frame / Aluminum alloy frame /Aluminum plate frame/ Stainless steel frame |
| Internal Support Frame | Galvanized iron, stainless steel wire |
| Filtration Grade | G1, G2 (EN779) |
| Filtration Object | ≥ 10 μm coarse dust and foreign matter |
| Average Weight Efficiency | 65% (ASHRAE52.1-1992) |
| Temperature Resistance | ≤100 ℃ |
| Instantaneous Temperature Resistance | ≤120 ℃ |
| Humidity Resistance | ≤100%RH |
| Model | Size(H*W*T) | Rated Air Speed(m/s) | Rated Air Flow(m³/h) | Initial Pressure Drop(Pa) |
|---|---|---|---|---|
| C-7 | 595x595x7 | 2 | 2500 | ≤50 |
| C-10 | 595x595x10 | |||
| C-15 | 595x595x15 | |||
| C-21 | 595x595x21 | |||
| C-25 | 595x595x25 | |||
| C-46 | 595x595x46 |
Applications

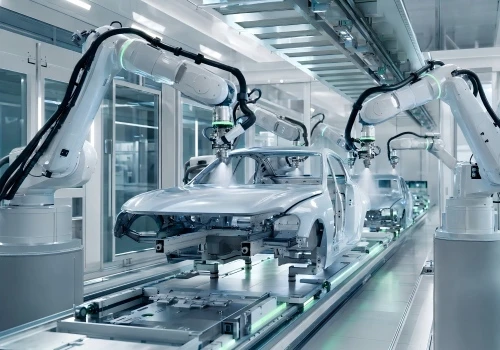

Nylon mesh primary air filter is widely used in HVAC systems, commercial ventilation, and industrial pre-filtration. They primarily capture large dust particles, fibers, and airborne debris, thereby protecting downstream medium- and high-efficiency filters and extending equipment service life. Frequently employed in office buildings, shopping malls, hospitals, electronics manufacturing plants, spray booths, and air handling units for primary filtration, it is a popular choice for basic air purification needs due to their durability, washability, and low airflow resistance.
